LoupeCam Camera to Global Operating Microscope Beamsplitter Adapter


Richard J Kinch
Back to Microscope Adapters page

Adapter optical assembly.

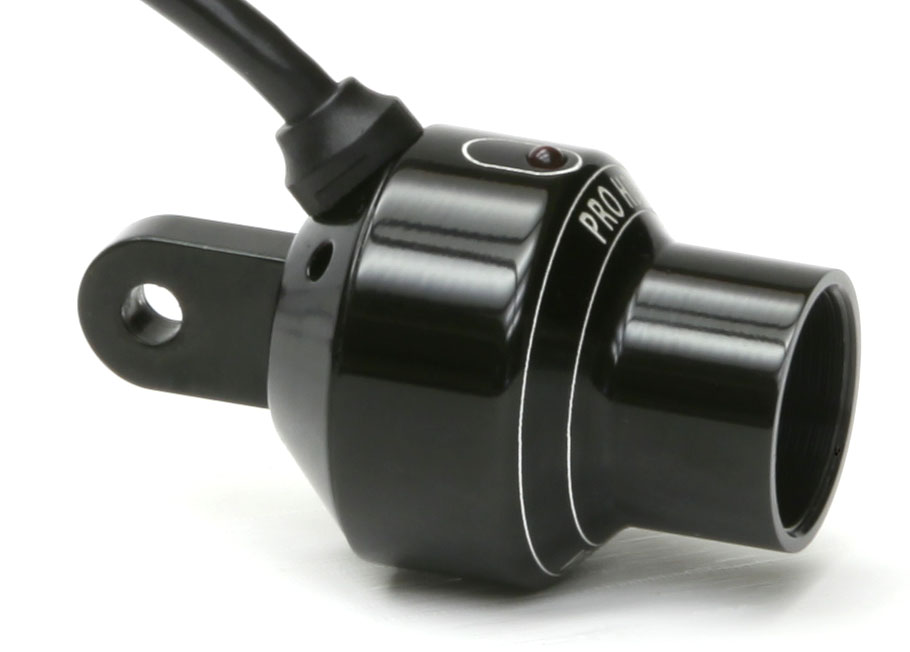

LoupeCam camera with stock lens removed LoupeCam camera with stock lens removed.

LoupeCam camera with operating microscope adapter LoupeCam assembled to adapter (entrance end).

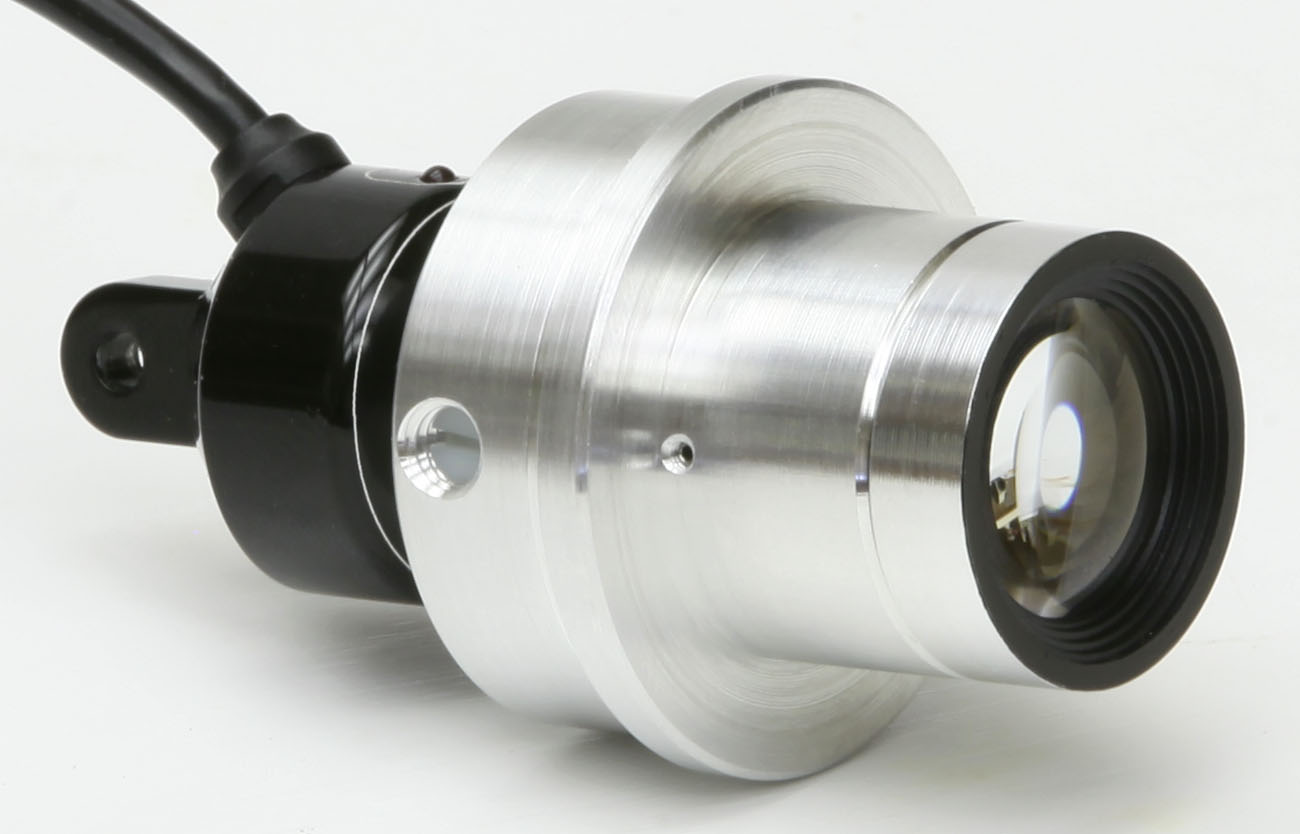

LoupeCam assembled to adapter (exit end).

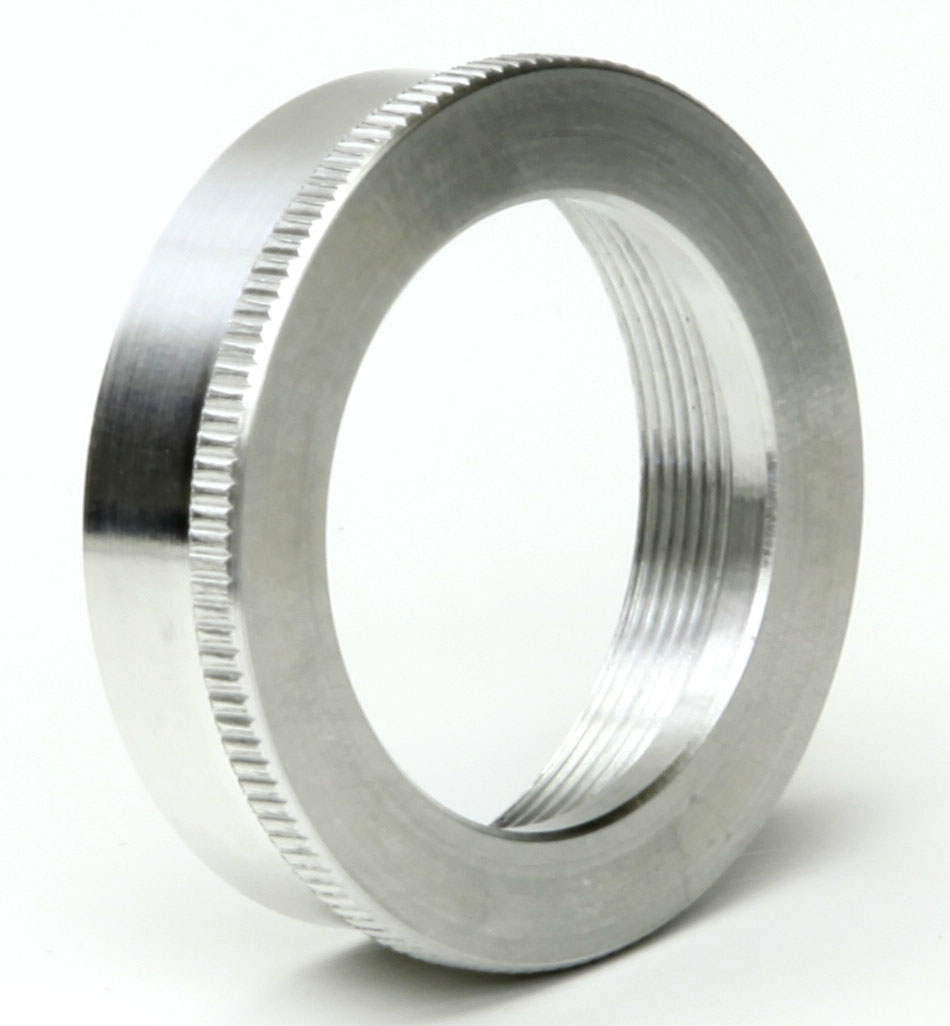

Lockring to attach optical assembly to beamsplitter on Global operating microscope.

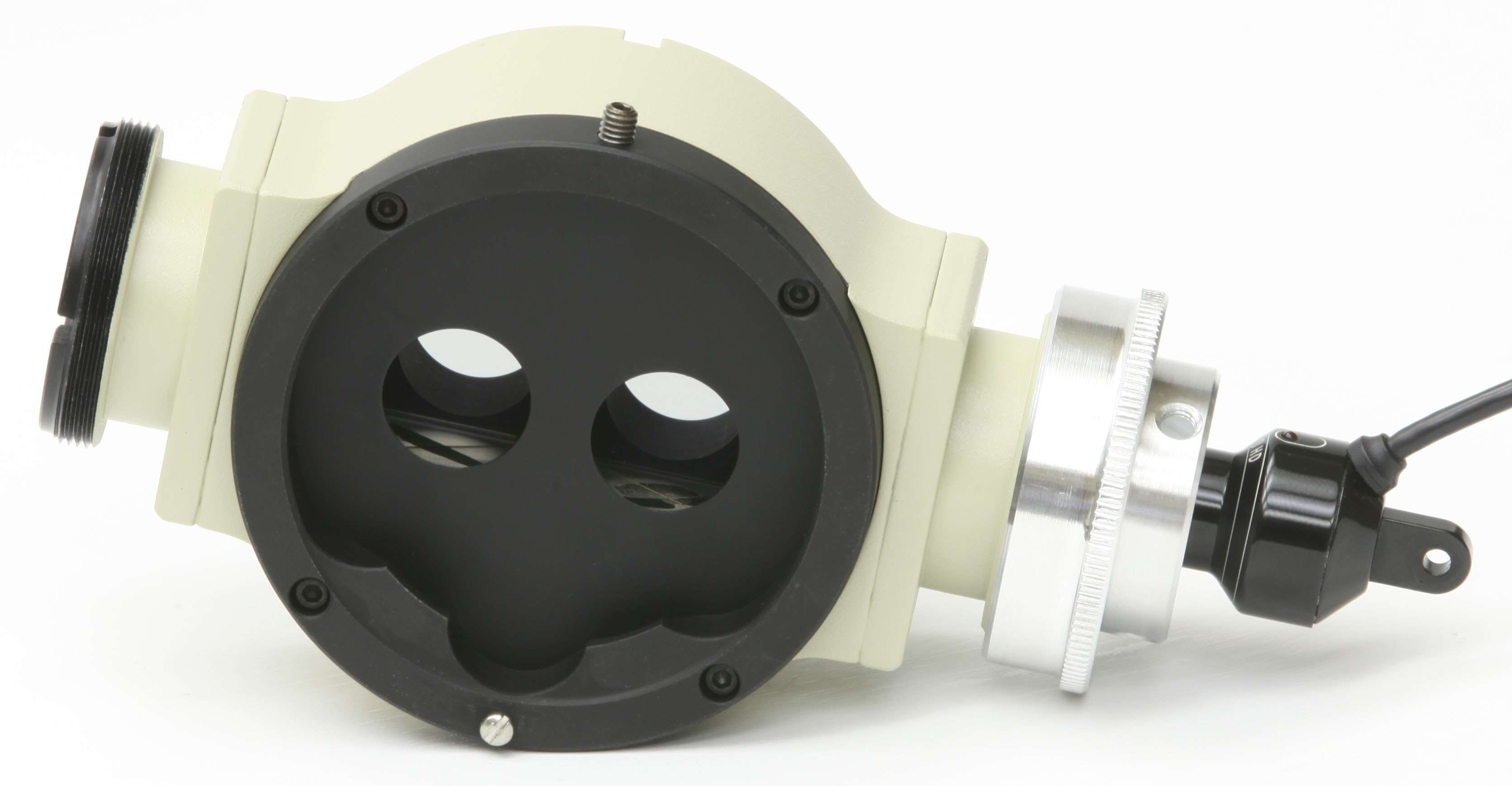

Global operating microscope beamsplitter with LoupeCam camera Complete assembly with LoupeCam camera (right) and Global surgical microscope beamsplitter (left) connected by the adapter.

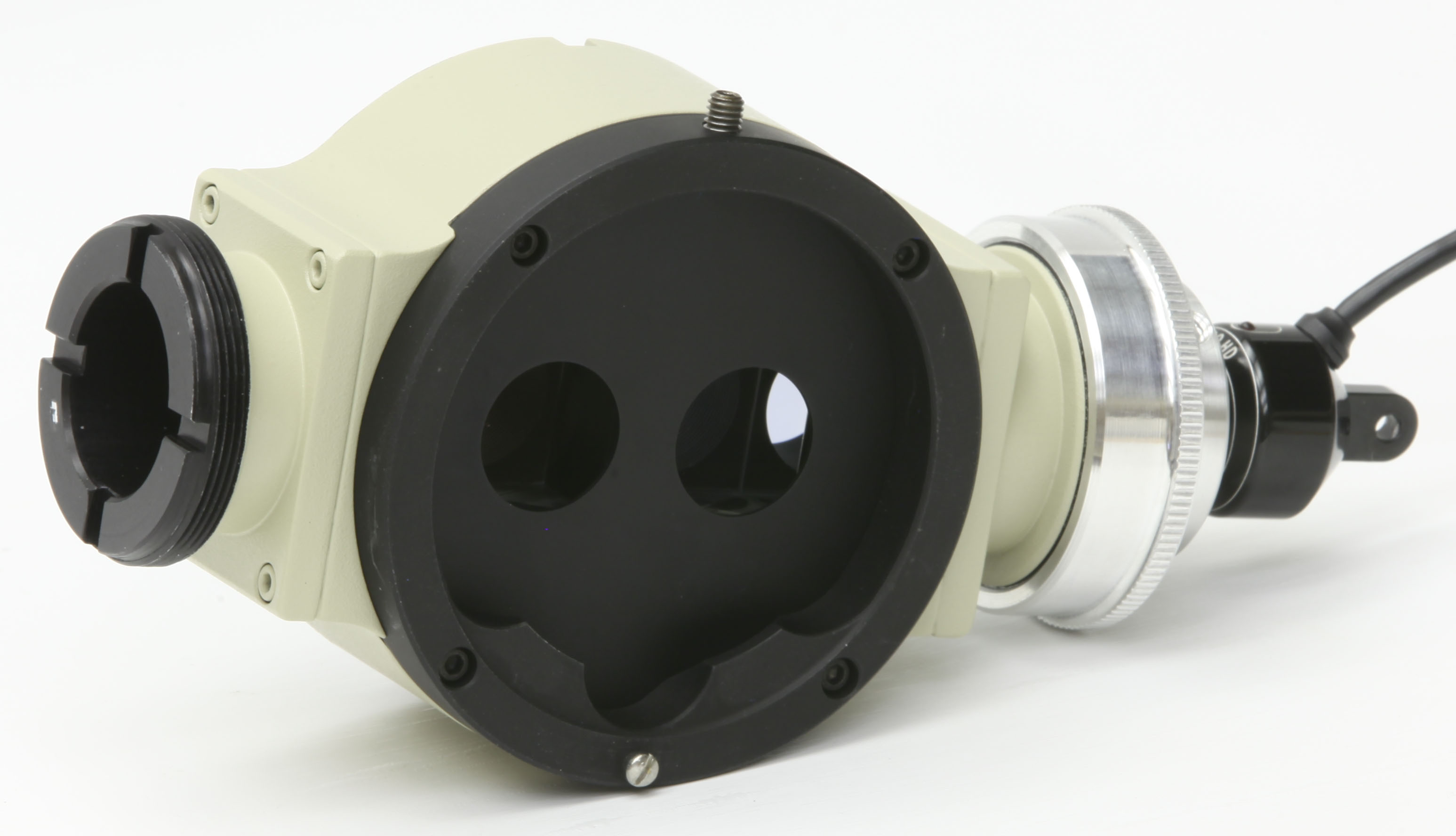

Complete assembly showing unused side of the Global beamsplitter.

Global beamsplitter reference drawing See also my Global beamsplitter reference drawing [PDF file].
